Model 22 (no longer available)
Click on photo for larger view
SPECIFICATIONS & INSTALLATION

Why use Model 22?

For fire separation between floors
To reduce response times
To eliminate drafts
To reduce heating and cooling losses
To inhibit fumes
To deter Insect infiltration
To eliminate the need for a closet
It gives an unobstructed view
To protect your pole hole
To have a keyed lock-out safety
To upgrade from existing Model 19 and Model 20 slidepoles.

Replacement Parts are available

Key Features

Electrical components include:

A programmable logic controller
Two infrared sensors
High temp cut-out switch
Two drive motors
Gap sealing with intumescent materials to insure sealing in case of fire
Stainless steel guards
Chrome plated bronze for many trouble-free years of service
Heat sensor to shut unit down

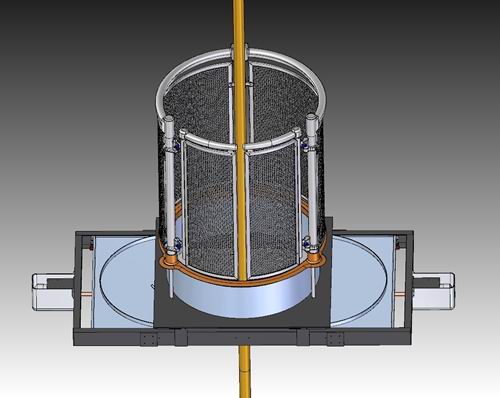

Self-closing gate
Model 20's can be retrofitted to Model 22 standards

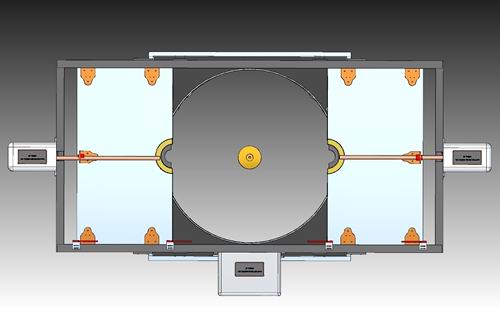

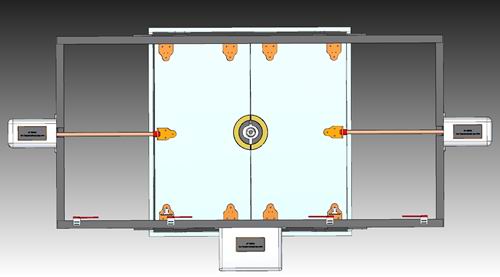

Fire door slide on a track parallel with ceiling.
